0-10 Vdc LED Dimming Control for Individual Rooms
The TacTouch TT-L Series is an individual room control to dim 0-10 Vdc dimmable LED or fluorescent luminaires from one or more doors and integrate with the room occupancy sensor and power pack. It targets the market segment between a simple wall box and a networked multi-room lighting control solution. This market segment needs more features than a simple single door wall box control but less complexity than a networked multi-room system.
Unique Selling Points:
The TacTouch TT-L Series is an individual room control to dim 0-10 Vdc dimmable LED or fluorescent luminaires from one or more doors and integrate with the room occupancy sensor and power pack. It targets the market segment between a simple wall box and a networked multi-room lighting control solution. This market segment needs more features than a simple single door wall box control but less complexity than a networked multi-room system.
Unique Selling Points:
- Can be daisy-chained to provide 3 or more way type capability with full dimming functionality at each door
- Two user settable Light Level Memory pushbuttons store user defined light level to memory (1 & 2)
- Integrates with low voltage occupancy for Auto On/Manual Off/Auto Off or Manual On/Auto Off operation
- 0-10 Vdc Output minimum and maximum setting is adjustable to match range of dimming driver
- Dimming Ramp Time adjustable from 2 to 7 seconds in one-second increments
- Integrates with Power Pack to switch lighting loads. Power Pack provides DC power for TT-L and sensor
- Returns to last dimming level after return of building power. Option to turn off lights after 10 minutes if no sensor signal is detected or pushbutton is pressed
- Auto On Output can be set to control Dimming Fixture to 50% power level and Plug Loads can be switched from second Power Pack as required to meet CEC Title 24 and ASHRAE 90.1 2010 energy codes
- Option for 0-10 Vdc dimming output with 100mAdc sinking capability
- Option for integrated relay that opens 0-10vdc control signal circuit on power failure so emergency fixtures will go to full light output

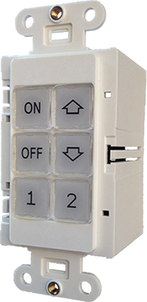

- Up and Down arrows for manual adjustment of light level. ON and OFF LED's illuminate to indicate to user when end of dimming range is reached.
- Switch provides user with excellent tactile feel and 1,000,000 mechanical operations
- Use standard Decorator-style wall plate (not included)
- Fits side-by-side for double & multi-gang box
- Green LED in upper right corner provides locator to help occupants find the switch when lights are off and indicates operating or setup mode
- Contractor-friendly removable screw terminal block makes installation a snap
- Limited 5-Year Warranty
- Compliant with CEC Title 20 and 24 requirement
- Available in White, Ivory, Gray and Red colors
